Apollo B30

$3,699.00
(0) Write a Review
SKU:
AB30B
Availability:
Built To Order
Shipping:
Calculated at Checkout

Product Description

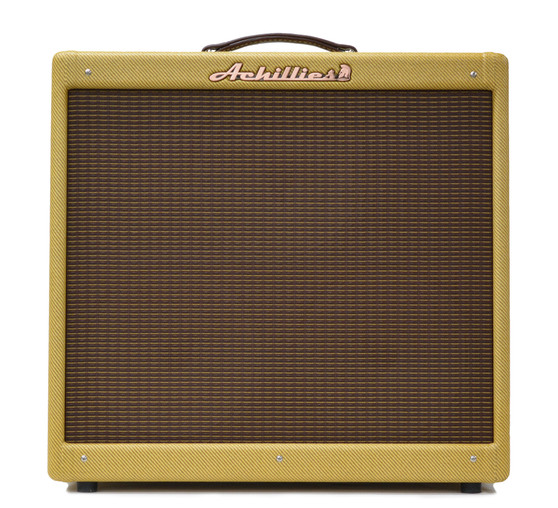

Apollo B30

The Apollo B30 is the amp that refuses to be confined to the past. Packing 30 watts of pure tube-driven power and a 3x10" speaker configuration, this compact powerhouse delivers the iconic tone that shook arenas worldwide.

However, don't be fooled by its stage-ready capabilities. The Apollo B30 is also the perfect companion for bedroom practice and small gigs. With a selectable half-power mode, you can dial back the volume without sacrificing an ounce of its tone. In addition to its lightweight, portable design, you can take this amp anywhere without breaking your back.



apollo-panel.jpg apollo-3x10.jpg



Overview

Hand-wired circuitry throughout.

Output Power: 30 Watts

Speakers - 3x10” Jensen P10R 8Ω - 25w per speaker

Traditional Dovetail Joinery Cabinetry

Lacquered finish inside and outside on Tweed Cabinets

Hand Signed Certificate with Production Number



Standard Features

Cloth Covered Solid Core Wiring Throughout

Custom Wound U.S.A Transformers

Output Tubes: 2x 6L6

Preamp Tubes: 1x 12AY7, 2x 12AX7

Rectifier: 1x 5U4

Cabinet Material: Premium Select Pine, Birch ply backs and speaker baffle

Voicing: Clean - Mid Way Break up to Bluesy Overdrive

Achillies Spec Tweed Woven Fabric Covering

Lacquered Nitrocellulose Coating

Achillies Chrome Dipped STAINLESS STEEL Chassis

57 x 27 x 53.5cm (22-1/2“ x 10-1/2” x 21”)  17kg (38lb)









Electronics

FR4 Eyelet Boards to tolerate heat and noise

Optional Line Voltage with wall plug ready for your country

Speaker Output Impedance 2.6Ω

Extension speaker output jack wired in parallel

2 channels - Two Inputs per channel Hi and Lo Jacks

Channel Controls: Normal Volume, Bright Volume, Treble, Bass, Presence

Fixed Bias

Achillies Black Gold Capacitors (Made in Germany)

Sprague Orange Drop Capacitors



Optional Features

A wide selection of tolex covering, grille cloths, and handle colours are available; for a complete list of all the possibilities, please see our customs options page.

Half Power output option. The switch is hidden from view beneath the chassis, in between the tubes. With this setting, the amp's power consumption is reduced by 40%.

2x 12” Jensen P12R Speakers, more speaker options available upon request.
