Product Description

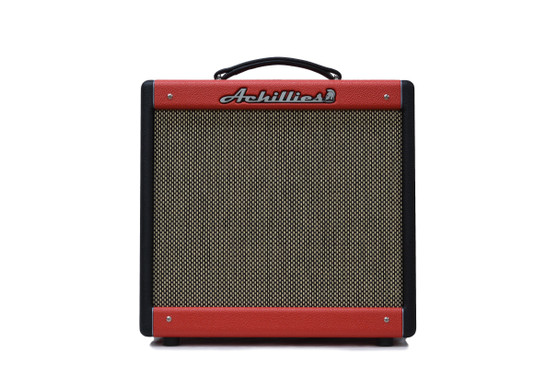

Apollo Nyx 8W
Inspired by our Apollo C5 and an upgrade from the Nyx 5w amplifier combo. This little thing punches out 8 watts of power from a single EL34 tube, you will instantly hear the British tone from this small foot print combo. Tighten up the bottom end with the rectifier switch to solid state rectification along with a foot switchable drive channel, high/low power switch options and our "Organic" true bypass series effects loop makes this the most versatile bedroom / recording low wattage amplifier combo. Even though its a small package you can stand out with your choice from either a 10" or 12" cabinet built with our exclusive Premium Select Pine timber along with our standard traditional dove tail joinery construction method.
 |
 |
|
Overview Hand-wired circuitry throughout. Output Power: Single Ended 8 Watts Speakers - 1x10” G10 Greenback 8Ω 25w Traditional Dovetail Joinery Cabinetry Hand Signed Certificate with Production Number |
Standard Features Cloth Covered Solid Core Wiring Throughout Custom Wound U.S.A Transformers Output Tubes: 1x EL34 Preamp Tubes: 1x 12AX7 Rectifier: 1x 5Y3 Cabinet Material - Premium Select Pine, Birch ply backs and speaker baffle Voicing Channel: Clean - Overdrive Footswitchable External Switching Rear Jack- Foot switch Included Black Bronco Tolex covering with optional colours available, Please see our custom options page Achillies Brushed STAINLESS STEEL Chassis 1x10” Cabinet 42 x 22.5 x 39cm (16-1/2” x 8-7/8” x 15-3/8”) 8.5kg (18.7lb) 1x12” Cabinet 51 x 24.5 x 41cm (20" x 9-5/8” x 16-1/8”) 10kg (22lb) |
|
|
|
|
Electronics FR4 Eyelet Boards to tolerate heat and noise Optional Line Voltage with wall plug ready for your country Speaker Outputs 4Ω, 8Ω, 16Ω Output fixed selection depending on speaker order, or personal preference 1 channel - Hi and Low Input Switch Bright Switch Series Organic Effects Loop Drive Switch - Foot switchable 5Y3 Tube / Solid State Rectifier Switch Channel Controls - Volume Cathode Bias Achillies Yellow Tone Capacitors Achillies Black Gold Capacitors (Made in Germany)
|
Optional Features A wide selection of tolex covering, grille cloths, and handle colours are available; for a complete list of all the possibilities, please see our customs options page. 1x 10 Jensen P10R, 1x12” Jensen P12R or 1x12” Celestion Greenback, more speaker options available upon request. |
|
|
|
